Descriptions

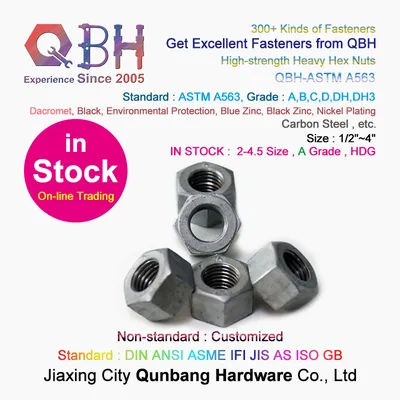

ASTM A563 is the standard specification for carbon and alloy steel nuts of various grades
in sizes from 1/4 inch to 4 inches for general structural and mechanical applications on bolts,
studs and other externally threaded components. A563 nuts from Glaser and Associates are
available in seven grades, A, B, C, C3, D, DH and DH3, offering different mechanical and
chemical properties for specific applications. ASTM A563 also covers the American
Association State Highway and Transportation Officials Standard AASHTO M-291.
These nuts are designed, manufactured and tested to comply with the standards set by
ASTM A563 for hardness, proof load and chemical and mechanical properties.
| HEAVY HEX NUTS unit:mm | ||||
| SIZE | F | H | C | KG/MPCS |
| 1/4 | 12.4--12.7 | 5.54--6.35 | 14.12--14.66 | 5.22 |
| 5/16 | 13.87--14.27 | 7.11--7.98 | 15.8--16.51 | 7.8 |
| 3/8 | 16.99--17.47 | 8.66--9.58 | 19.38--20.17 | 14.25 |
| 7/16 | 18.49--19.05 | 10.24--11.2 | 21.08--22 | 18.88 |
| 1/2 | 21.59--22.23 | 11.79--12.8 | 24.61--25.65 | 30 |
| 9/16 | 23.09--23.83 | 13.36--14.43 | 26.34--27.51 | 37 |
| 5/8 | 26.19--26.97 | 14.91--16.03 | 29.84--31.17 | 54 |
| 3/4 | 30.78--31.75 | 18.03--19.25 | 35.1--36.65 | 88 |
| 7/8--9 | 35.41--36.53 | 21.16--22.48 | 40.36--42.16 | 135 |
| 1--8 | 40.01--41.28 | 24.28--25.7 | 45.61--47.65 | 193 |
| 1-1/8-7 | 46.02-44.6 | 28.93-27.4 | 53.16-51.49 | 269 |
| 1-1/4-7 | 50.8-49.22 | 31.77-30.14 | 58.64-56.83 | 348 |
| 1-3/8-6 | 55.57-53.82 | 35-33.27 | 64.16-62.14 | 463 |
| 1-1/2-6 | 60.32-58.42 | 38.22-36.39 | 69.64-67.46 | 595 |
| 1-5/8-5 | 65.07-63.01 | 41.45-39.52 | 75.15-72.75 | 742 |
| 1-7/8-5 | 74.62-72.23 | 47.9-45.77 | 86.15-83.4 | 1090 |
| 1-3/4-5 | 69.85-67.61 | 44.67-42.64 | 8.64-78.06 | 926 |
| 2-4.5 | 79.37-76.83 | 51.13-48.89 | 91.64-88.71 | 1357 |
| 2-1/4-4.5 | 88-86.05 | 57.17-54.73 | 102.64-99.36 | 1879 |
| 2-1/2-4 | 98.42-95.25 | 63.62-60.98 | 113.63-109.98 | 2555 |
| 2-3/4-4 | 107.95-104.44 | 70.07-67.23 | 124.63-120.59 | 3379 |
| 3-4 | 117.47-113.66 | 76.53-73.48 | 135.63-131.24 | 4315 |
Materials and Chemical compstition
1035
| CHEMICAL COMPOSI % | |||||||
| C | Si | Mn | P | S | Cr | Ni | Cu |
| 0.34 | 0.13 | 0.73 | 0.012 | 0.002 | 0.02 | 0.01 | 0.02 |
10B21
| CHEMICAL COMPOSI % | ||||||
| C | Si | Mn | P | S | Cr | B |
| 0.2 | 0.04 | 0.81 | 0.017 | 0.007 | 0.017 | 0.0021 |
1045
| CHEMICAL COMPOSI % | |||||||
| C | Si | Mn | P | S | Cr | Ni | Cu |
| 0.45 | 0.23 | 0.58 | 0.014 | 0.006 | 0.057 | 0.008 | 0.016 |
40CR
| CHEMICAL COMPOSI % | |||||||
| C | Si | Mn | P | S | Cr | Ni | Cu |
| 0.4 | 0.21 | 0.54 | 0.015 | 0.008 | 0.95 | 0.02 | 0.02 |
35CRMO
| CHEMICAL COMPOSI % | ||||||||
| C | Si | Mn | P | S | Cr | Ni | Cu | Mo |
| 0.35 | 0.22 | 0.59 | 0.01 | 0.003 | 0.93 | 0.01 | 0.01 | 0.21 |
42CRMO
| CHEMICAL COMPOSI % | ||||||||
| C | Si | Mn | P | S | Cr | Ni | Cu | Mo |
| 0.42 | 0.27 | 0.92 | 0.013 | 0.004 | 1.01 | 0.03 | 0.04 | 0.2 |
Package & Certifications
Free Samples for Standard Fastener from Jiaxing City Qunbang Hardware
We Promise:
1.High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service
FAQ
1.What's your experience like?
Our general manager has been engaged in the export of fasteners since 2005.
Our team can provide you with professional fasteners selling and smooth export services.
2.How about your price?
High quality products with reasonable price. Please give me a inquire, We will quoted you a price
for you refer at once.
3. How do you control your quality?
We require the quality control department to inspect every production link of each shipment. And we
can provide you MTC and mill certificate when the goods is finished.
4.How about your delivery time?
General speaking, if the goods is in stock, we can delivery them with 2-5days, If the quantity is 1-2container,
we can give you with 18-25days,if the quantity is more than 2 container and you are very urgent, we can let
factory priority produce your goods.
5.What is your packing?
Our packing is 20-25kg for one carton,36 or 48pcs cartons for one pallet. One pallets is about 900-960kg,
We also can make customer's logo on the cartons. Or we customized cartons according to customers'
requirement.
6.What is your payment term?
We can accept T/T,LC for general order ,Paypal and Western union for small order or samples order.
Awaiting for your kind inquiry! Thanks & best regards!
