Basic Info.
Finish
Plain, Black, Zp, Yzp, HDG, Dacromet, Geomet, etc.
Transport Package
Carton, Polybag, Barrel
Product Description
Product Description

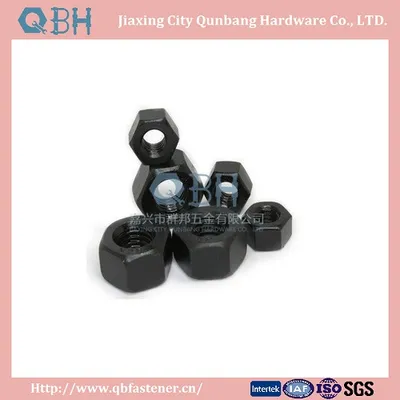

| STYLE | METRIC HEAVY HEX NUTS |
| STANDARD | ASTM A563M |
| SIZE | M12 - M64 |
| FINIISH | Zinc Plated, HDG, Black, PLAIN, Dacromet, Geomet, etc |
| CLASS | 5,10 |
| USED | Machinery, Building |
| MATERIAL | Medium Carbon steel |
| PACKING | bulk/ boxes in cartons, bulk in polybags/ buckets, etc. |
| PALLET | solid wood pallet, plywood pallet, ton box/bag, etc. |
| MAX BODY LENGTH | 800mm/32in |
Dimension:
| A563M |
| Unit:mm | |
| d | Thread | S | E | M |
| max | min | max | min | max | min |
| M12 | 1.75 | 21.00 | 20.10 | 24.25 | 22.76 | 12.30 | 11.90 |
| M14 | 2 | 24.00 | 23.10 | 27.71 | 26.17 | 14.30 | 13.60 |
| M16 | 2 | 27.00 | 26.10 | 31.18 | 29.56 | 17.10 | 16.40 |
| M18 | 2.5 | 30.00 | 29.10 | 34.64 | 32.93 | 18.65 | 17.46 |
| M20 | 2.5 | 34.00 | 33.00 | 39.20 | 37.29 | 20.70 | 19.10 |
| M22 | 2.5 | 36.00 | 35.00 | 41.57 | 39.55 | 23.60 | 22.30 |
| M24 | 3 | 41.00 | 40.00 | 47.34 | 45.20 | 24.20 | 22.90 |
| M27 | 3 | 46.00 | 45.00 | 53.12 | 50.85 | 27.60 | 26.30 |
| M30 | 3.5 | 50.00 | 49.00 | 57.74 | 55.37 | 30.70 | 29.10 |
| M33 | 3.5 | 55.00 | 53.00 | 65.51 | 60.79 | 33.40 | 32.01 |
| M36 | 4 | 60.00 | 58.00 | 69.28 | 66.44 | 36.60 | 35.00 |
| M39 | 4 | 65.00 | 63.40 | 73.00 | 71.95 | 39.00 | 37.50 |
| M42 | 4.5 | 70.00 | 67.00 | 80.85 | 77.41 | 42.00 | 40.40 |
| M48 | 5 | 80.00 | 77.50 | 92.38 | 88.46 | 48.00 | 46.40 |
| M52 | 5 | 85.00 | 82.40 | 96.15 | 93.94 | 52.00 | 50.30 |
| M56 | 5.5 | 90.00 | 87.20 | 103.02 | 99.41 | 56.00 | 54.10 |
| M64 | 6 | 100.00 | 96.80 | 115.47 | 110.55 | 64.00 | 62.10 |
Free Samples for standard fastener from Jiaxing City Qunbang Hardware
QBH Promise:
1. High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service
FAQ
Q:Are you a factory or trading company?
A: We are factories, mainly producing fasteners, such as nuts, bolts, screws and rods, and meanwhile, we also manage other hardware products.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiaxing City, Zhejiang Province with a good location and convenient transportation, which is next to Shanghai Port, Ningbo Port and Zhapu Port.
Q: How does your factory do regarding quality control?
A: "Quality is priority" we supervise each production link and we always attach great importance to quality controlling from the beginning to the end.
Awaiting for your kind inquiry! Thanks & best regards!
For more information: http://qbfastener.en.made-in-china.com & http://qbfastener.en.made-in-china.com
