Basic Info.
Max Body Length
800mm/32inch
Use
Machine, Chemical, Industry
Transport Package
Carton, Polybag, Barrel
Origin
Jiaxing City, Zhejiang Province.
Product Description
Product Description:

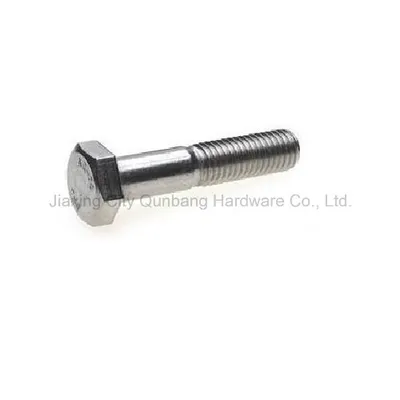

| Style | Hexagon Bolts |
| Standard | British Standard |
| Size | 1/4"-2" |
| Grade | 4.8-12.9 |
| Material | SUS304, SUS316 |
| Thread | U.N.C. |
| Length | 10mm-300mm |
| Finish | Passivation |
| Packing | Carton, Polybag, Barrel |
| Pallet | solid wood pallet, plywood pallet, ton box/bag, etc. |
Free Samples for standard fastener from Jiaxing City Qunbang Hardware
| BS1083-1965 |
| |
| | Unit:inch | |
| d | P | K | S |
| BSW | BSF | max | min | max | min |
| 1/4 | 20 | 26 | 0.176 | 0.166 | 0.445 | 0.438 |
| 5/16 | 18 | 22 | 0.218 | 0.208 | 0.525 | 0.518 |
| 3/8 | 16 | 20 | 0.26 | 0.25 | 0.6 | 0.592 |
| 7/16 | 14 | 18 | 0.302 | 0.292 | 0.71 | 0.702 |
| 1/2 | 12 | 16 | 0.343 | 0.333 | 0.82 | 0.812 |
| 9/16 | 12 | 16 | 0.375 | 0.365 | 0.92 | 0.912 |
| 5/8 | 11 | 14 | 0.417 | 0.408 | 1.01 | 1 |
| 3/4 | 10 | 12 | 0.5 | 0.48 | 1.2 | 1.19 |
| 7/8 | 9 | 11 | 0.583 | 0.563 | 1.3 | 1.288 |
| 1 | 8 | 10 | 0.666 | 0.636 | 1.48 | 1.468 |
| 1-1/8 | 7 | 9 | 0.75 | 0.71 | 1.67 | 1.64 |
| 1-1/4 | 7 | 9 | 0.93 | 0.79 | 1.86 | 1.815 |
| 1-3/8 | / | 8 | 0.92 | 0.88 | 2.05 | 2.005 |
| 1-1/2 | 6 | 8 | 1 | 0.96 | 2.22 | 2.175 |
| 1-3/4 | 5 | 7 | 1.17 | 1.11 | 2.58 | 2.52 |
| 2 | 4.5 | 7 | 1.33 | 1.27 | 2.76 | 2.7 |
QBH Promise:
1. High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service
FAQ
Q:Are you a factory or trading company?
A: We are factories, mainly producing fasteners, such as nuts, bolts, screws and rods, and meanwhile, we also manage other hardware products.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiaxing City, Zhejiang Province with a good location and convenient transportation, which is next to Shanghai Port, Ningbo Port and Zhapu Port.
Q: How does your factory do regarding quality control?
A: "Quality is priority" we supervise each production link and we always attach great importance to quality controlling from the beginning to the end.
Awaiting for your kind inquiry! Thanks & best regards!
