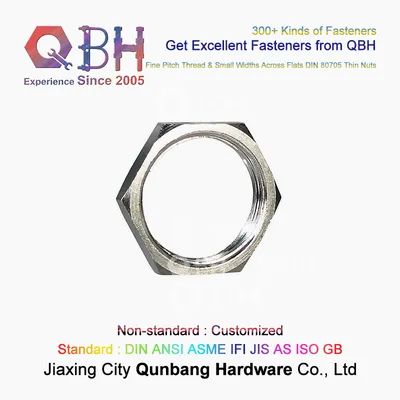

DIN 80705 Thin Nuts with Fine Pitch Thread and Small Widths Across Flats

DIN 80705 Thin Nuts with Fine Pitch Thread and Small Widths Across Flats

Basic Info.Model NO.QBH-DIN80705MaterialCarbon SteelTypeHexagon HeadConnectionCommon BoltHead StyleHexagonalStandardDINGrade4.8,6.8,8.8,10.9,12.9, etc.TrademarkQBHTransport Package25kgs/Box, Bulk in PalletSpecificationM10-M24OriginChinaHS Code73181500Product DescriptionSpecifications DIN 80705 Thin ......Keywords:DIN 80705 Thin Nuts with Fine Pitch Thread and Small Widths Across Flats, U Bolt, Bolt and Nut

Send Inquiry

Product Description

Basic Info.

Model NO.
QBH-DIN80705
Type
Hexagon Head
Connection
Head Style
Standard
Grade
4.8,6.8,8.8,10.9,12.9, etc.
Trademark
QBH
Transport Package
25kgs/Box, Bulk in Pallet
Specification
M10-M24
Origin
China
HS Code
73181500

Product Description


Specifications


DIN 80705 Thin Nuts With Fine Pitch Thread And With Small Widths Across Flats

Material

  • Steel, stainless-steel, galvanized steel, brass, aluminium, copper.

Application

  • QBH DIN 80705 nut is thin hex nut that suitable for both indoor and outdoor application. It can find in outdoor public place such as campsites, parks, playgrounds, benches, cars and roof top tents.

Benefits

  • QBH DIN 80705 is Thin nuts with fine pitch thread and small width across flats.
  • This steel nut ideal for corrosion resistance application.
  • Available in both measuring size metric and inch.
  • REACH and RoHS Compliant.
  • It can use in low-clearance application where it another nut in place.
  • Often use in framing of construction and create secure connection with bolted joint.
  • Provide simple and easy installation and removal.

Operation

  • DIN 80705 hex nut have great outer structure that provide easy grip.
  • It recommended to use as a load distributor and locking fastener.

Legend:

s - size of the hexagon
e - the diameter of the circumscribed circle (not less than)
m - height of the nut
d - the nominal diameter of the thread

Makings:QBH

Steel: 14H
Stainless: -
Plastic: -
Non Ferrous: Brass
Thread: 6H

Notes:
-

Table according to DIN 80705:

Series 1 - Octagon
Thread de min.msweight kg/pc
M5675,722700,32
M6081,222750,36
M6486,624800,45
M689224850,51
M72x697,424900,56
M76x610326950,67
M80x6108261000,74
M85x6114261050,81
M90x6119261100,84
M95x6124281150,95
M100x6130281201
M105x6141281301,3
M110x6141281301,1
M115x6146301351,2
M120x6157301451,5
M125x6162301501,7
M130x6168301551,7
M140x6179351652,2



Series 2 - Hexagon

Thread de min.msweight kg/pc
HexagonOctagon
M12x1,518,72617-0,7
M14x1,520,88619-0,82
M16x1,523,91622-1,1
M18x1,526,17624-1,2
M20x1,529,56627-1,6
M22x1,532,95730-2,3
M24x1,535,03732-2,5
M26x1,539,55836-4
M30x245,2841-5
M36x250,85946-6,2
M42x255,37950-5,9
M45x260,79955-7,7
M52x270,310-6511,2
