Basic Info.
Finish
Plain, Black, Zp, Yzp, HDG, Dacromet, Geomet, etc.
Transport Package
Carton, Polybag, Barrel
Product Description
Product Description

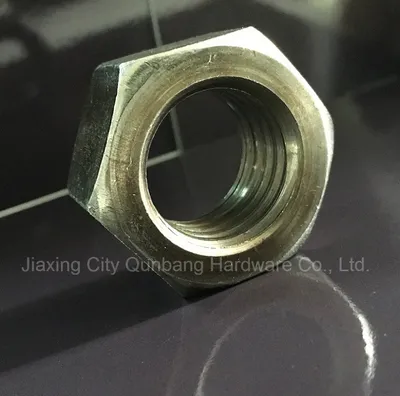

| STYLE | METRIC HEAVY HEX NUTS |
| STANDARD | ANSI B18.2.4.6M |
| SIZE | M12-M90 |
| FINIISH | Zinc Plated, HDG, Black, PLAIN, Dacromet, Geomet, etc |
| CLASS | Cl.5/10 |
| MATERIAL | Medium carbon steel |
| PACKING | bulk/ boxes in cartons, bulk in polybags/ buckets, etc. |
| PALLET | solid wood pallet, plywood pallet, ton box/bag, etc. |
| MECHANICAL PROPERTIES | ISO898.2 |
Dimensions:
| ANSI B18.2.4.6M |
| unit:mm | |
| d | thread | S | E | M |
| max | min | max | min | max | min |
| M12 | 1.75 | 21.00 | 20.16 | 24.25 | 22.78 | 12.3 | 11.9 |
| M14 | 2 | 24.00 | 23.16 | 27.71 | 26.17 | 14.3 | 13.6 |
| M16 | 2 | 27.00 | 26.16 | 31.18 | 29.56 | 17.1 | 16.4 |
| M20 | 2.5 | 34.00 | 33.00 | 39.26 | 37.29 | 20.7 | 19.4 |
| M22 | 2.5 | 36.00 | 35.00 | 41.57 | 39.55 | 23.6 | 22.3 |
| M24 | 3 | 41.00 | 40.00 | 47.34 | 45.20 | 24.2 | 22.9 |
| M27 | 3 | 46.00 | 45.00 | 53.12 | 50.85 | 27.6 | 26.3 |
| M30 | 3.5 | 50.00 | 49.00 | 57.74 | 55.37 | 30.7 | 29.1 |
| M36 | 4 | 60.00 | 58.80 | 69.28 | 66.44 | 36.6 | 35.0 |
| M42 | 4.5 | 70.00 | 67.90 | 80.83 | 77.41 | 42.0 | 40.4 |
| M48 | 5 | 80.00 | 77.60 | 92.38 | 88.46 | 48.0 | 46.4 |
| M56 | 5.5 | 90.00 | 87.20 | 103.92 | 99.41 | 56.0 | 54.1 |
| M64 | 6 | 100.00 | 96.80 | 115.47 | 110.35 | 64.0 | 62.1 |
| M72 | 6 | 110.00 | 106.40 | 127.02 | 121.30 | 72.0 | 70.1 |
| M80 | 6 | 120.00 | 116.00 | 138.56 | 132.24 | 80.0 | 78.1 |
| M90 | 6 | 135.00 | 130.50 | 155.88 | 148.77 | 90.0 | 87.8 |
Free Samples for standard fastener from Jiaxing City Qunbang Hardware
QBH Promise:
1. High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service
