Basic Info.
Model NO.
BS1083 1/4′-2′ YZP Gr. 2/5/8
Thread
Full Thread / Half Thread
Transport Package
Bulk/Boxes in Cartons, Bulk in Polybags/-Buckets
Product Description
Prodect Details:

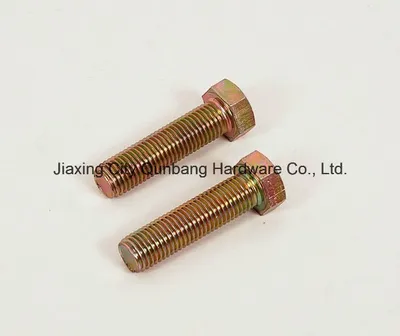

HEX BOLTS
| BS1083 |
| STANDARD: | BSW |
| SIZE: | 1/4'-2' |
| MATERIAL: | LOW CARBON STEEL,MEDIUM CARBON STEEL |
| GRADE: | 2/5/8 |
| FINISH: | YZP |
| PACKING: | BULK/BOXES IN CARTONS,BULK IN POLYBAGS/ -BUCKETS,ETC. |
| PALLET: | SOLID WOOD PALLET,PLYWOOD PALLET,TON BOX/BAG.ETC. |
Dimensions
| BS 1083-Grade A |
| |
| | Unit:inch |
| D | P | s | k |
| BSW | BSF | max | min | max | min |
| 1/4 | 20 | 26 | 0.445 | 0.438 | 0.2 | 0.19 |
| 5/16 | 18 | 22 | 0.525 | 0.518 | 0.25 | 0.24 |
| 3/8 | 16 | 20 | 0.6 | 0.592 | 0.312 | 0.302 |
| 7/16 | 14 | 18 | 0.71 | 0.702 | 0.375 | 0.365 |
| 1/2 | 12 | 16 | 0.82 | 0.812 | 0.437 | 0.427 |
| 9/16 | 12 | 16 | 0.92 | 0.912 | 0.5 | 0.49 |
| 5/8 | 11 | 14 | 1.01 | 1 | 0.562 | 0.552 |
| 3/4 | 10 | 12 | 1.2 | 1.19 | 0.687 | 0.677 |
| 7/8 | 9 | 11 | 1.3 | 1.288 | 0.75 | 0.74 |
| 1 | 8 | 10 | 1.48 | 1.468 | 0.875 | 0.865 |
| 1-1/8 | 7 | 9 | 1.67 | 1.64 | 1 | 0.99 |
| 1-1/4 | 7 | 9 | 1.86 | 1.815 | 1.125 | 1.105 |
| 1-3/8 | / | 8 | 2.05 | 2.005 | 1.25 | 1.23 |
| 1-1/2 | 6 | 8 | 2.22 | 2.175 | 1.375 | 1.365 |
| 1-3/4 | 5 | 7 | 2.58 | 2.52 | 1.625 | 1.605 |
| 2 | 4.5 | 7 | 2.76 | 2.7 | 1.75 | 1.73 |
Mechanical property
FAQ
Q:Are you a factory or trading company?
A: We are factories, mainly producing fasteners, such as nuts, bolts, screw and rod, and meanwhile, we also manage other hardware products.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiaxing City, Zhejiang Province with a good location and convenient transportation, which is next to Shanghai Port, Ningbo Port and Zhapu Port.
Q: How does you factory do regarding quality control?
A: "Quality is priority" we supervise each production link and we always attach great importance to quality controlling from the beginning to the end.
Our Promise:
1. High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. Best service
If you have any demand, DO NOT hesitate to contact us,
we try our best to give you professional service.
