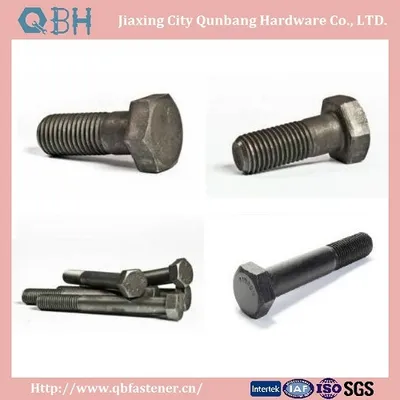

Hex Bolts (Plain Cl. 4.8/6.8/8.8/10.9 JIS B1180)

Basic Info.Model NO.M3-M80MaterialCarbon SteelTypeHexagon HeadConnectionCommon BoltHead StyleHexagonalStandardJISApplicationMachineryFinishHot GalvanizingSizeM3-M80Surface TreatmentPlainMax Body Length800mm/32inSamplesFreeTrademarkQBHTransport PackageCarton, Polybag, BarrelOriginJiaxing, ZhejiangHS ......Keywords:Hex Bolts (Plain Cl. 4.8/6.8/8.8/10.9 JIS B1180), JIS B1180, Hex Bolts

Product Description

Basic Info.

Model NO.

M3-M80

Material

Carbon Steel

Type

Hexagon Head

Connection

Common Bolt

Head Style

Hexagonal

Standard

JIS

Application

Machinery

Finish

Hot Galvanizing

Size

M3-M80

Surface Treatment

Plain

Max Body Length

800mm/32in

Samples

Free

Trademark

QBH

Transport Package

Carton, Polybag, Barrel

Origin

Jiaxing, Zhejiang

HS Code

7318151001

Product Description

STYLE	HEX BOLTS
STANDARD	JIS B1180
SIZE	M3-M80
FINIISH	PLAIN, BLACK, Z.P., Y.Z.P., H.D.G., dacromet, geomet, mechanical zinc plated, etc.
CLASS	Cl.4.8/6.8/8.8/10.9
MATERIAL	Low carbon steel, Medium carbon steel
PACKING	bulk/ boxes in cartons, bulk in polybags/ buckets, etc.
PALLET	solid wood pallet, plywood pallet, ton box/bag, etc.
MECHANICAL PROPERTIES	JIS B 1051

Free Samples for standard fastener from Jiaxing City Qunbang Hardware

Dimension:

JIS B1181-2004
Hexagon Bolts
					Unit:mm
d	P	ds		k		s
M3	0.5	3	-0.1	2	±0.1	5.5	-0.2
M3.5	0.6	3.5		2.4		6
M4	0.7	4		2.8		7
M4.5	0.75	4.5		3.2	±0.15	8
M5	0.8	5		3.5		8
M6	1	6		4		10
M7	1	7	-0.15	5		11	-0.25
M8	1.25/1	8		5.5		13
M10	1.5/1.25	10		7	±0.2	17
M12	1.75/1.25	12	-0.25	8		19	-0.35
M14	2/1.5	14		9		22
M16	2/1.5	16		10		24
M18	2.5/1.5	18		12		27
M20	2.5/1.5	20		13		30
M22	2.5/1.5	22		14		32	-0.4
M24	3/2	24		15		36
M27	3/2	27		17		41
M30	3.5/2	30		19	±0.25	46
M33	3.5/2	33	-0.3	21		50
M36	4/3	36		23		55	-0.45
M39	4/3	39		25		60
M42	4.5	42		26		65
M45	4.5	45		28		70
M48	5	48		30		75
M52	5	52		33	±0.3	80
M56	5.5	56		35		85	-0.55
M60	5.5	60		38		90
M64	6	64		40		95
M68	6	68		43		100
M72	6	72		45		105
M76	6	76		48		110
M80	6	80		50		115

QBH Promise:
1. High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service

FAQ
Q:Are you a factory or trading company?
A: We are factories, mainly producing fasteners, such as nuts, bolts, screws and rods, and meanwhile, we also manage other hardware products.

Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiaxing City, Zhejiang Province with a good location and convenient transportation, which is next to Shanghai Port, Ningbo Port and Zhapu Port.

Q: How does your factory do regarding quality control?
A: "Quality is priority" we supervise each production link and we always attach great importance to quality controlling from the beginning to the end.

Awaiting for your kind inquiry! Thanks & best regards!
