Basic Info.
Model NO.

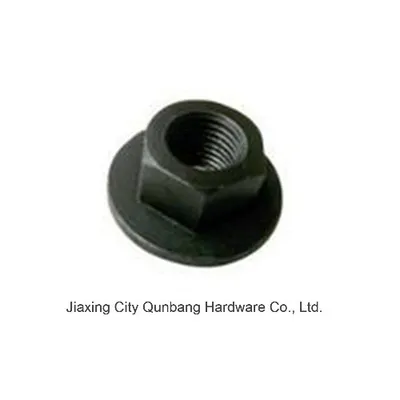

Hex Flange Nuts DIN6923 M5-M30
Type
Hexagon Head With Flange
Mechanical Properties
ISO898.2
Transport Package
Bulk/Boxes in Cartons, Bulk in Polybags /Buckets
Origin
Jiaxing City, Zhejiang Province.
Product Description
Product Description:
DIN6923
| STYLE | HEX FLANGE NUTS and LARGE HEX FLANGE NUTS |
| STANDARD | DIN |
| SIZE | M5-M30 |
| FINIISH | BLACK |
| CLASS | Cl. 6/8 |
| MATERIAL | Low carbon steel, medium carbon steel |
| PACKING | bulk/ boxes in cartons, bulk in polybags/ buckets, etc. |
| PALLET | solid wood pallet, plywood pallet, ton box/bag, etc. |
| ANSI B18.2.2-1986 |
| Large hexagon flange nuts |
| | | | | unit:inch | | |
| d | s | dc | m |
| max | min | max | min | max | min |
| 1/4 | 0.438 | 0.428 | 0.728 | 0.700 | 0.312 | 0.281 |
| 5/16 | 0.500 | 0.489 | 0.820 | 0.790 | 0.375 | 0.343 |
| 3/8 | 0.562 | 0.551 | 0.915 | 0.885 | 0.406 | 0.390 |
| 7/16 | 0.688 | 0.675 | 1.131 | 1.100 | 0.468 | 0.437 |
| 1/2 | 0.750 | 0.736 | 1.205 | 1.175 | 0.515 | 0.485 |
| 9/16 | 0.875 | 0.861 | 1.300 | 1.260 | 0.578 | 0.546 |
| 5/8 | 0.938 | 0.922 | 1.360 | 1.280 | 0.640 | 0.600 |
| ANSI B18.2.2-1986 |
| Hexagon flange nuts |
| | | | | unit:inch | | |
| d | s | dc | m |
| max | min | max | min | max | min |
| 1/4 | 0.438 | 0.428 | 0.594 | 0.574 | 0.236 | 0.222 |
| 5/16 | 0.500 | 0.489 | 0.680 | 0.660 | 0.283 | 0.268 |
| 3/8 | 0.562 | 0.551 | 0.750 | 0.728 | 0.347 | 0.330 |
| 7/16 | 0.688 | 0.675 | 0.937 | 0.910 | 0.395 | 0.375 |
| 1/2 | 0.750 | 0.736 | 1.031 | 1.000 | 0.458 | 0.437 |
| 9/16 | 0.875 | 0.861 | 1.188 | 1.155 | 0.506 | 0.483 |
| 5/8 | 0.938 | 0.922 | 1.281 | 1.248 | 0.569 | 0.545 |
| 3/4 | 1.125 | 1.088 | 1.500 | 1.460 | 0.675 | 0.627 |
We promise:
A. The fastest response: Informations about the product will be replied the first time as soon as we receive the inquiry.
B. High quality: Durability testing and critical technical are designed to enhance the lifetime of the fasteners.
C. Cost effective: Competitive prices with factory directly supply.
D. The shortest delivery:The goods will be deliveried within 30 days.
E. Professional manufacturer: All of our fasteners are designed and manufactured according to buyers' specification and performance.
