Basic Info.
Grade
Cl.4.8/6.8/8.8/10.9
Transport Package
Bulk/Boxes in Carton, Bulk in Polybags/-Buckets
Origin
Jiaxing, Zhejiang, China
Product Description
Product Description

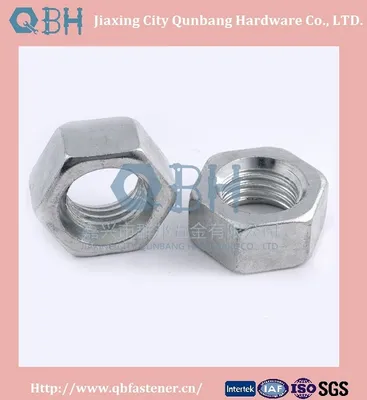

| Product name | HEX THIN NUTS |
| Standard | BS916 |
| Size | 5/8"-3" |
| Grade | CL.4.8/6.8/8.8/10.9 |
| Material | Low carbon steel , Medium carbon steel, Alloy steel |
| Finish | Z.P., B.Z.P.,PLAIN, BLACK, H.D.G., dacromet, geomet, nickle plated, mechanical zinc plated, etc. |
| Packing | bulk/boxes in cartons, bulk in poly bags/-buckets, etc |
| Pallet | solid wood pallet, plywood pallet, ton box/bag, etc. |
| Mechanical Properties: | GB 3098.2 |
Free Samples for standard fastener from Jiaxing City Qunbang Hardware
| | Unit:inch |
| Size | P | K | S |
| BSW | BSF | max | min | max | min |
| 5/8 | 11 | 14 | 0.602 | 0.562 | 1.01 | 0.985 |
| 3/4 | 10 | 12 | 0.728 | 0.687 | 1.2 | 1.175 |
| 7/8 | 9 | 11 | 0.81 | 0.75 | 1.3 | 1.27 |
| 1 | 8 | 10 | 0.935 | 0.875 | 1.48 | 1.45 |
| 1-1/8 | 7 | 9 | 1.06 | 1 | 1.67 | 1.64 |
| 1-1/4 | 7 | 9 | 1.205 | 1.125 | 1.86 | 1.815 |
| 1-3/8 | 6 | 8 | 1.33 | 1.25 | 2.05 | 2.005 |
| 1-1/2 | 6 | 8 | 1.455 | 1.375 | 2.22 | 2.175 |
| 1-5/8 | 5 | 8 | 1.58 | 1.5 | 2.41 | 2.365 |
| 1-3/4 | 5 | 7 | 1.725 | 1.625 | 2.58 | 2.52 |
| 2 | 4.5 | 7 | 1.85 | 1.75 | 2.76 | 2.7 |
| 2-1/4 | 4 | 6 | 1.975 | 1.875 | 3.15 | 3.09 |
| 2-1/2 | 4 | 6 | 2.225 | 2.125 | 3.55 | 3.49 |
| 2-3/4 | 3.5 | 6 | 2.475 | 2.375 | 3.89 | 3.83 |
| 3 | 3.5 | 5 | 2.775 | 2.625 | 4.18 | 4.08 |
QBH Promise:
1. High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service
FAQ
Q:Are you a factory or trading company?
A: We are factories, mainly producing fasteners, such as nuts, bolts, screws and rods, and meanwhile, we also manage other hardware products.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiaxing City, Zhejiang Province with a good location and convenient transportation, which is next to Shanghai Port, Ningbo Port and Zhapu Port.
Q: How does your factory do regarding quality control?
A: "Quality is priority" we supervise each production link and we always attach great importance to quality controlling from the beginning to the end.
Awaiting for your kind inquiry! Thanks & best regards!
