Basic Info.
Pallet
Solid Wood Pallet, Plywood Pallet, Ton Box/Bag,Ect
Transport Package
Bulk/Boxes in Carton, Bulk in Polybags/-Buckets
Origin
Jiaxing, Zhejiang, China
Product Description
Product Description

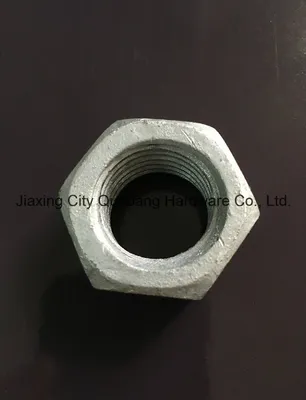

| Product name | HEX NUTS |
| Standard | BS1083 |
| Size | 1/4"-2" |
| Grade | Gr.2/5/8 |
| Material | Low carbon steel , Medium carbon steel, Alloy steel |
| Finish | Z.P., B.Z.P.,PLAIN, BLACK, H.D.G., dacromet, geomet, nickle plated, mechanical zinc plated, etc. |
| Packing | Bulk/boxes in cartons, bulk in poly bags/-buckets, etc |
| Pallet | Solid wood pallet, plywood pallet, ton box/bag, etc. |
| Mechanical Properties: | SAE J995 |
| BS 1083-Grade A |
| |
| | Unit:inch |
| D | P | s | k |
| BSW | BSF | max | min | max | min |
| 1/4 | 20 | 26 | 0.445 | 0.438 | 0.2 | 0.19 |
| 5/16 | 18 | 22 | 0.525 | 0.518 | 0.25 | 0.24 |
| 3/8 | 16 | 20 | 0.6 | 0.592 | 0.312 | 0.302 |
| 7/16 | 14 | 18 | 0.71 | 0.702 | 0.375 | 0.365 |
| 1/2 | 12 | 16 | 0.82 | 0.812 | 0.437 | 0.427 |
| 9/16 | 12 | 16 | 0.92 | 0.912 | 0.5 | 0.49 |
| 5/8 | 11 | 14 | 1.01 | 1 | 0.562 | 0.552 |
| 3/4 | 10 | 12 | 1.2 | 1.19 | 0.687 | 0.677 |
| 7/8 | 9 | 11 | 1.3 | 1.288 | 0.75 | 0.74 |
| 1 | 8 | 10 | 1.48 | 1.468 | 0.875 | 0.865 |
| 1-1/8 | 7 | 9 | 1.67 | 1.64 | 1 | 0.99 |
| 1-1/4 | 7 | 9 | 1.86 | 1.815 | 1.125 | 1.105 |
| 1-3/8 | / | 8 | 2.05 | 2.005 | 1.25 | 1.23 |
| 1-1/2 | 6 | 8 | 2.22 | 2.175 | 1.375 | 1.365 |
| 1-3/4 | 5 | 7 | 2.58 | 2.52 | 1.625 | 1.605 |
| 2 | 4.5 | 7 | 2.76 | 2.7 | 1.75 | 1.73 |
FAQ
Q:Are you a factory or trading company?
A:We are factories, mainly producing fasteners, such as nuts, bolts, screw and rod, and meanwhile, we also manage other hardware products.
Q:Where is your factory located?How can I visit there?
A:Our factory is located in Jiaxing City, Zhejiang Province with a good location and convenient transportation, which is next to Shanghai Port, Ningbo Port and Zhapu Port.
Q:How does you factory do regarding quality control?
A:"Quality is priority" we supervise each production link and we always attach great importance to quality controlling from the beginning to the end.
Our Promise:
1.High quality
2.Competitive price
3.The shortest delivery
4.The fastest response
5.Best service
If you are not sure about what exactly you need - feel free to contact us anytime and get professional assistance from us.
