Basic Info.
Model NO.
JIS B1181 M5-M90
Mechanical Properties
ISO898.2
Transport Package
Carton, Polybag, Barrel
Origin
Jiaxing City, Zhejiang Province.
Product Description
Product Description

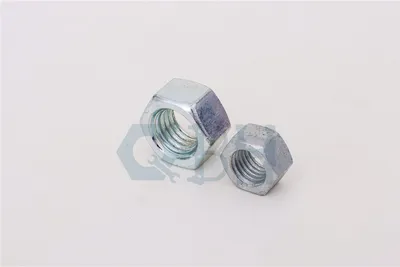

| STYLE | HEX NUTS |
| STANDARD | JIS B1181 |
| SIZE | M5-M90 |
| FINIISH | H.D.G., |
| CLASS | Cl.6/8/10 |
| MATERIAL | Low carbon steel, Medium carbon steel |
| PACKING | bulk/ boxes in cartons, bulk in polybags/ buckets, etc. |
| PALLET | solid wood pallet, plywood pallet, ton box/bag, etc. |
| MECHANICAL PROPERTIES | ISO898.2 |
Dimension:
| JIS B1181-1993 |
| Hexagon nuts |
| unit:mm |
| D | P | k | s |
| max | min | max | min |
| M5 | 0.8 | 4 | 3.7 | 8 | 7.8 |
| M6 | 1 | 5 | 4.7 | 10 | 9.8 |
| M7 | 1 | 5.5 | 5.2 | 11 | 10.75 |
| M8 | 1.25/1 | 6.5 | 6.14 | 13 | 12.75 |
| M10 | 1.5/1.25 | 8 | 7.64 | 17 | 16.75 |
| M12 | 1.75/1.25 | 10 | 9.64 | 19 | 18.65 |
| M14 | 2/1.5 | 11 | 10.57 | 22 | 21.65 |
| M16 | 2/1.5 | 13 | 12.57 | 24 | 23.65 |
| M18 | 2.5/1.5 | 15 | 14.57 | 27 | 26.65 |
| M20 | 2.5/1.5 | 16 | 15.57 | 30 | 29.65 |
| M22 | 2.5/1.5 | 18 | 17.57 | 32 | 31.6 |
| M24 | 3/2 | 19 | 18.48 | 36 | 35.6 |
| M27 | 3/2 | 22 | 21.48 | 41 | 40.6 |
| M30 | 3.5/2 | 24 | 23.48 | 46 | 45.6 |
| M33 | 3.5/2 | 26 | 25.48 | 50 | 49.6 |
| M36 | 4/3 | 29 | 28.48 | 55 | 54.55 |
| M39 | 4/3 | 31 | 30.38 | 60 | 59.55 |
| M42 | 4.5 | 34 | 33.38 | 65 | 64.55 |
| M45 | 4.5 | 36 | 35.38 | 70 | 69.55 |
| M48 | 5 | 38 | 37.38 | 75 | 74.55 |
| M52 | 5 | 42 | 41.38 | 80 | 79.55 |
| M56 | 5.5 | 45 | 44.38 | 85 | 84.45 |
| M60 | 5.5 | 48 | 47.38 | 90 | 89.45 |
| M64 | 6 | 51 | 50.26 | 95 | 94.45 |
| M68 | 6 | 54 | 53.26 | 100 | 99.45 |
| M72 | 6 | 58 | 57.26 | 105 | 104.45 |
| M76 | 6 | 61 | 60.26 | 110 | 109.45 |
| M80 | 6 | 64 | 63.26 | 115 | 114.45 |
| M85 | 6 | 68 | 67.26 | 120 | 119.45 |
| M90 | 6 | 72 | 71.26 | 130 | 129.35 |
FAQ
Q:Are you a factory or trading company?
A: We are factories, mainly producing fasteners, such as nuts, bolts, screw and rod, and meanwhile, we also manage other hardware products.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiaxing City, Zhejiang Province with a good location and convenient transportation, which is next to Shanghai Port, Ningbo Port and Zhapu Port.
Q: How does you factory do regarding quality control?
A: "Quality is priority" we supervise each production link and we always attach great importance to quality controlling from the beginning to the end.
