Basic Info.
Surface Treatment
Plain, Black, Zp, Yzp, HDG, Dacromet, Geomet, etc.
Transport Package
Bulk/Boxes in Cartons, Bulk in Polybags/-Buckets
Product Description
Product Descriptions:

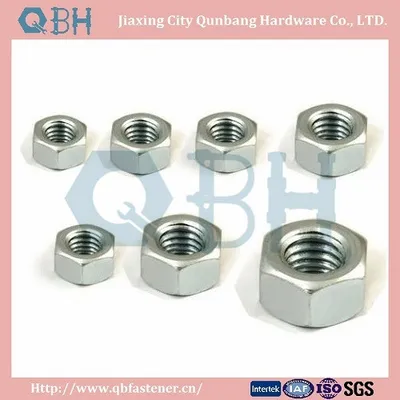

DIN970
| STYLE | HEX NUTS |
| STANDARD | DIN |
| SIZE | M1.6-M64 |
| FINISH | PLAIN, BLACK, Z.P., Y.Z.P., H.D.G., dacromet, nickle plated, mechanical zinc plated, etc. |
| CLASS | Cl.6/8/10 |
| MATERIAL | low carbon steel, medium carbon steel |
| PACKING | bulk/boxes in cartons, bulk in polybags/buckets, etc. |
| PALLET | solid wood pallet, plywood pallet, ton box/bag, etc |
Dimension
| DIN970-1982 |
|
|
| | Unit:mm |
| D | P | m | s |
| max | min | max | min |
| M1.6 | 0.35 | 1.3 | 1.05 | 3.2 | 3.02 |
| M2 | 0.4 | 1.6 | 1.35 | 4 | 3.82 |
| M2.5 | 0.45 | 2 | 1.75 | 5 | 4.82 |
| M3 | 0.5 | 2.4 | 2.15 | 5.5 | 5.32 |
| M3.5 | 0.6 | 2.8 | 2.55 | 6 | 5.82 |
| M4 | 0.7 | 3.2 | 2.9 | 7 | 6.78 |
| M5 | 0.8 | 4.7 | 4.4 | 8 | 7.78 |
| M6 | 1 | 5.2 | 4.9 | 10 | 9.78 |
| M8 | 1.25 | 6.8 | 6.44 | 13 | 12.73 |
| M10 | 1.5 | 8.4 | 8.04 | 16 | 15.73 |
| M12 | 1.75 | 10.8 | 10.37 | 18 | 17.73 |
| M14 | 2 | 12.8 | 12.1 | 21 | 20.67 |
| M16 | 2 | 14.8 | 14.1 | 24 | 23.67 |
| M18 | 2.5 | 15.8 | 15.1 | 27 | 26.16 |
| M20 | 2.5 | 18 | 16.9 | 30 | 29.16 |
| M22 | 2.5 | 19.4 | 18.1 | 34 | 33 |
| M24 | 3 | 21.5 | 20.2 | 36 | 35 |
| M27 | 3 | 23.8 | 22.5 | 41 | 40 |
| M30 | 3.5 | 25.6 | 24.3 | 46 | 45 |
| M33 | 3.5 | 28.7 | 27.4 | 50 | 49 |
| M36 | 4 | 31 | 29.4 | 55 | 53.8 |
| M39 | 4 | 33.4 | 31.8 | 60 | 58.8 |
| M42 | 4.5 | 34 | 32.4 | 65 | 63.1 |
| M45 | 4.5 | 36 | 34.4 | 70 | 68.1 |
| M48 | 5 | 38 | 36.4 | 75 | 73.1 |
| M52 | 5 | 42 | 40.4 | 80 | 78.1 |
| M56 | 5.5 | 45 | 43.4 | 85 | 82.8 |
| M60 | 5.5 | 48 | 46.4 | 90 | 87.8 |
| M64 | 6 | 51 | 49.1 | 95 | 92.8 |
Free Samples for standard fastener from Jiaxing City Qunbang Hardware
QBH Promise:
1. High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service
FAQ
Q:Are you a factory or trading company?
A: We are factories, mainly producing fasteners, such as nuts, bolts, screws and rods, and meanwhile, we also manage other hardware products.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiaxing City, Zhejiang Province with a good location and convenient transportation, which is next to Shanghai Port, Ningbo Port and Zhapu Port.
Q: How does your factory do regarding quality control?
A: "Quality is priority" we supervise each production link and we always attach great importance to quality controlling from the beginning to the end.
Awaiting for your kind inquiry! Thanks & best regards!
For more information: http://qbfastener.en.made-in-china.com & http://qbfastener.en.made-in-china.com
