Basic Info.
Model NO.
IN912 BLACK M5-M42
Pallet
Solid Wood Pallet, Plywood Pallet, Ton Box/Bag,Ect
Transport Package
Carton, Polybag, Barrel
Origin
Jiaxing City, Zhejiang Province.
Product Description
Product Description:

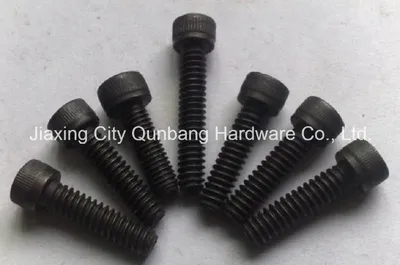

| Product name | HEX SCOCKET HEAD SCREW |
| Standard | DIN912 |
| Size | M5-M42 |
| Class | 4.8/6.8/8.8/10.9 |
| Material | Low Carbon Steel & Medium Carbon |
| FINISH: | BLACK |
| Packing | bulk/boxes in cartons, bulk in poly bags/-buckets, etc |
| Pallet | solid wood pallet, plywood pallet, ton box/bag, etc. |
| Mechanical Properties | ISO898.2 |
unit:mm
| d | P | b | dk | k | S | t |
| msx | min | max | min | max | min | min |
| M5 | 0.8 | 22 | 8.72 | 8.28 | 5 | 4.82 | 4.095 | 4.02 | 2.5 |
| M6 | 1 | 24 | 10.22 | 9.78 | 6 | 5.7 | 5.14 | 5.02 | 3 |
| M8 | 1.25/1 | 28 | 13.27 | 12.73 | 8 | 7.64 | 6.14 | 6.02 | 4 |
| M10 | 1.5/1.25/1 | 32 | 16.27 | 15.73 | 10 | 9.64 | 8.175 | 8.025 | 5 |
| M12 | 1.75/1.5/1.25 | 36 | 18.27 | 17.73 | 12 | 11.57 | 10.175 | 10.025 | 6 |
| M14 | 2/1.5 | 40 | 21.33 | 20.67 | 14 | 12.57 | 12.212 | 12.032 | 7 |
| M16 | 2/1.5 | 44 | 24.33 | 23.67 | 16 | 15.57 | 14.212 | 14.032 | 8 |
| M18 | 2.5/2/1.5 | 48 | 27.33 | 36.67 | 18 | 19.48 | 14.212 | 14.032 | 9 |
| M20 | 2.5/2/1.5 | 52 | 30.33 | 29.67 | 20 | 21.48 | 17.23 | 17.05 | 10 |
| M22 | 2.5/2/1.5 | 56 | 33.39 | 32.61 | 22 | 23.48 | 17.23 | 17.05 | 11 |
| M24 | 3/2 | 60 | 36.39 | 35.61 | 24 | 26.48 | 19.275 | 19.065 | 12 |
| M27 | 3/2 | 66 | 40.39 | 39.61 | 27 | 29.48 | 19.275 | 19.065 | 13.5 |
| M30 | 3.5/2 | 72 | 45.39 | 44.61 | 30 | 32.38 | 22.275 | 22.065 | 15.5 |
| M33 | 3.5/2 | 78 | 50.39 | 49.61 | 33 | 35.38 | 24.275 | 24.065 | 18 |
| M36 | 4/3 | 84 | 54.46 | 53.54 | 36 | 41.38 | 27.275 | 27.065 | 19 |
| M42 | 4.5/3 | 96 | 63.46 | 62.54 | 42 | 47.38 | 32.33 | 32.08 | 24 |
FAQ
Q:Are you a factory or trading company?
A: We are factories, mainly producing fasteners, such as nuts, bolts, screw and rod, and meanwhile, we also manage other hardware products.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiaxing City, Zhejiang Province with a good location and convenient transportation, which is next to Shanghai Port, Ningbo Port and Zhapu Port.
Q: How does you factory do regarding quality control?
A: "Quality is priority" we supervise each production link and we always attach great importance to quality controlling from the beginning to the end.
Our Promise:
1. High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. Best service
If you are not sure about what exactly you need - feel free to contact us anytime and get professional assistance from us.
