Basic Info.
Standard
BS (British Standard)
Grade
A2~70, A4~70, A4~80
Stainless Steel Style
304, 316
Delivery Time
About 20 Days
Transport Package
Cartons, Polybags, Buckets
Origin
Jiaxing City, Zhejiang Province.
Product Description
Product Description

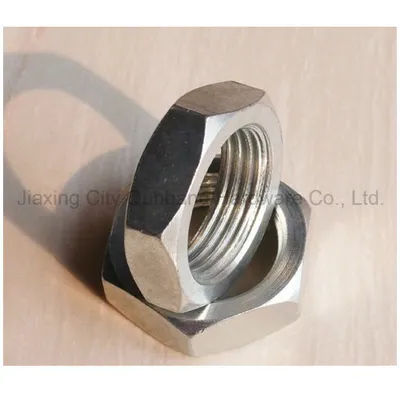

| STYLE | Hexagon Thin Nuts |
| STANDARD | BS916 |
| SIZE | 5/8"-3" |
| FINIISH | Stainless steel passivation |
| Grade | A2-70, A4-70 |
| MATERIAL | 304,316 |
| PACKING | bulk/ boxes in cartons, bulk in polybags/ buckets, etc. |
| PALLET | solid wood pallet, plywood pallet, ton box/bag, etc. |
| Place of Origin | Jiaxing, Zhengjiang, China |
| | Unit:inch |
| Size | P | K | S |
| BSW | BSF | max | min | max | min |
| 5/8 | 11 | 14 | 0.41 | 0.375 | 1.01 | 0.985 |
| 3/4 | 10 | 12 | 0.49 | 0.458 | 1.2 | 1.175 |
| 7/8 | 9 | 11 | 0.55 | 0.5 | 1.3 | 1.27 |
| 1 | 8 | 10 | 0.63 | 0.583 | 1.48 | 1.45 |
| 1-1/8 | 7 | 9 | 0.72 | 0.666 | 1.67 | 1.64 |
| 1-1/4 | 7 | 9 | 0.81 | 0.75 | 1.86 | 1.815 |
| 1-3/8 | 6 | 8 | 0.89 | 0.833 | 2.05 | 2.005 |
| 1-1/2 | 6 | 8 | 0.98 | 0.916 | 2.22 | 2.175 |
| 1-5/8 | 5 | 8 | 1.06 | 1 | 2.41 | 2.365 |
| 1-3/4 | 5 | 7 | 1.16 | 1.083 | 2.58 | 2.52 |
| 2 | 4.5 | 7 | 1.25 | 1.166 | 2.76 | 2.7 |
| 2-1/4 | 4 | 6 | 1.43 | 1.25 | 3.15 | 3.09 |
| 2-1/2 | 4 | 6 | 1.6 | 1.416 | 3.55 | 3.49 |
| 2-3/4 | 3.5 | 6 | 1.77 | 1.58 | 3.89 | 3.83 |
| 3 | 3.5 | 5 | 1.98 | 1.75 | 4.18 | 4.08 |
Free Samples for standard fastener from Jiaxing City Qunbang Hardware
QBH Promise:
1. High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service
