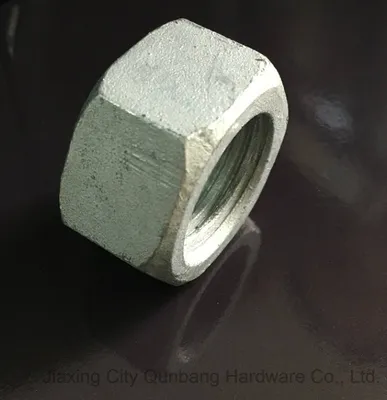

JIS B1181 (Carbon Steel Hex Nuts H. D. G. M5-M90)

Basic Info.Model NO.JIS B1181 M5-M90MaterialCarbon SteelTypeHexagon HeadConnectionCommon BoltHead StyleHexagonalStandardJISGrade6/8/10SizeM5-M90SampleFreeMechanical PropertiesISO898.2FinishHot GalvanizingTrademarkQBHTransport PackageCarton, Polybag, BarrelOriginJiaxing City, Zhejiang Province.HS Cod......Keywords:JIS B1181 (Carbon Steel Hex Nuts H. D. G. M5-M90), Hex Nuts, JIS B1181

Product Description

Basic Info.

Model NO.

JIS B1181 M5-M90

Material

Carbon Steel

Type

Hexagon Head

Connection

Common Bolt

Head Style

Hexagonal

Standard

JIS

Grade

6/8/10

Size

M5-M90

Sample

Free

Mechanical Properties

ISO898.2

Finish

Hot Galvanizing

Trademark

QBH

Transport Package

Carton, Polybag, Barrel

Origin

Jiaxing City, Zhejiang Province.

HS Code

73181600

Product Description

STYLE	HEX NUTS
STANDARD	JIS B1181
SIZE	M5-M90
FINIISH	PLAIN, BLACK, Z.P., Y.Z.P., H.D.G., dacromet, geomet, mechanical zinc plated, etc.
CLASS	Cl.6/8/10
MATERIAL	Low carbon steel, Medium carbon steel
PACKING	bulk/ boxes in cartons, bulk in polybags/ buckets, etc.
PALLET	solid wood pallet, plywood pallet, ton box/bag, etc.
MECHANICAL PROPERTIES	ISO898.2

Free Samples for standard fastener from Jiaxing City Qunbang Hardware

Dimension:

JIS B1181-1993
Hexagon nuts
unit:mm
D	P	k		s
D	P	max	min	max	min
M5	0.8	4	3.7	8	7.8
M6	1	5	4.7	10	9.8
M7	1	5.5	5.2	11	10.75
M8	1.25/1	6.5	6.14	13	12.75
M10	1.5/1.25	8	7.64	17	16.75
M12	1.75/1.25	10	9.64	19	18.65
M14	2/1.5	11	10.57	22	21.65
M16	2/1.5	13	12.57	24	23.65
M18	2.5/1.5	15	14.57	27	26.65
M20	2.5/1.5	16	15.57	30	29.65
M22	2.5/1.5	18	17.57	32	31.6
M24	3/2	19	18.48	36	35.6
M27	3/2	22	21.48	41	40.6
M30	3.5/2	24	23.48	46	45.6
M33	3.5/2	26	25.48	50	49.6
M36	4/3	29	28.48	55	54.55
M39	4/3	31	30.38	60	59.55
M42	4.5	34	33.38	65	64.55
M45	4.5	36	35.38	70	69.55
M48	5	38	37.38	75	74.55
M52	5	42	41.38	80	79.55
M56	5.5	45	44.38	85	84.45
M60	5.5	48	47.38	90	89.45
M64	6	51	50.26	95	94.45
M68	6	54	53.26	100	99.45
M72	6	58	57.26	105	104.45
M76	6	61	60.26	110	109.45
M80	6	64	63.26	115	114.45
M85	6	68	67.26	120	119.45
M90	6	72	71.26	130	129.35

QBH Promise:
1. High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service

FAQ
Q:Are you a factory or trading company?
A: We are factories, mainly producing fasteners, such as nuts, bolts, screws and rods, and meanwhile, we also manage other hardware products.

Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiaxing City, Zhejiang Province with a good location and convenient transportation, which is next to Shanghai Port, Ningbo Port and Zhapu Port.

Q: How does your factory do regarding quality control?
A: "Quality is priority" we supervise each production link and we always attach great importance to quality controlling from the beginning to the end.

Awaiting for your kind inquiry! Thanks & best regards!
