Basic Info.
Surface Finishing
Passivation of Stainless Steel
Nominal Diameter
1/4"-1-1/2"
Transport Package
Carton, Polybag, Barrel
Specification
1/4"-1-1/2"
Origin
Jiaxing City, Zhejiang Province.
Product Description
Product Description

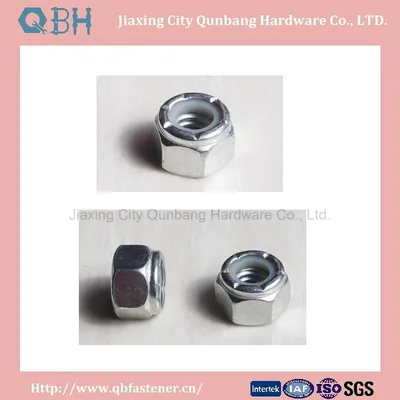

| Product name | Stainless Steel Nylon Lock Nuts |
| Standard | ASME B18.16.6 |
| Size | 1/4"-1-1/2" |
| Grade | A2,A4 |
| Finish | Stainless Polishing |
| Material | SS304,SS316 |
| Packing | Carton, Polybag, Barrel |
| Pallet | solid wood pallet, plywood pallet, ton box/bag |
| Mechanical properties | DIN267.1 |
Free Samples for standard fastener from Jiaxing City Qunbang Hardware
Chemical Components:
| ASME B18.16.6-2008 |
| Embedded nylon lock nuts |
| | unit:inch |
| D | s | k | m |
| max | min | max | min | min |
| 1/4 | 0.439 | 0.43 | 0.328 | 0.298 | 0.225 |
| 5/16 | 0.502 | 0.489 | 0.359 | 0.329 | 0.25 |
| 3/8 | 0.564 | 0.551 | 0.468 | 0.438 | 0.335 |
| 7/16 | 0.627 | 0.616 | 0.468 | 0.438 | 0.324 |
| 1/2 | 0.752 | 0.736 | 0.609 | 0.579 | 0.464 |
| 9/16 | 0.877 | 0.861 | 0.656 | 0.626 | 0.469 |
| 5/8 | 0.94 | 0.922 | 0.765 | 0.735 | 0.593 |
| 3/4 | 1.064 | 1.052 | 0.89 | 0.86 | 0.742 |
| 7/8 | 1.252 | 1.239 | 0.999 | 0.969 | 0.79 |
| 1 | 1.44 | 1.427 | 1.078 | 1.016 | 0.825 |
| 1-1/8 | 1.627 | 1.614 | 1.203 | 1.141 | 0.93 |
| 1-1/4 | 1.815 | 1.801 | 1.422 | 1.36 | 1.125 |
| 1-3/8 | 2.008 | 1.973 | 1.609 | 1.547 | 1.282 |
| 1-1/2 | 2.197 | 2.159 | 1.64 | 1.578 | 1.313 |
QBH Promise:
1. High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service
FAQ
Q:Are you a factory or trading company?
A: We are factories, mainly producing fasteners, such as nuts, bolts, screws and rods, and meanwhile, we also manage other hardware products.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiaxing City, Zhejiang Province with a good location and convenient transportation, which is next to Shanghai Port, Ningbo Port and Zhapu Port.
Q: How does your factory do regarding quality control?
A: "Quality is priority" we supervise each production link and we always attach great importance to quality controlling from the beginning to the end.
Awaiting for your kind inquiry! Thanks & best regards!
