DIN EN 1661 FLANGE NUTS

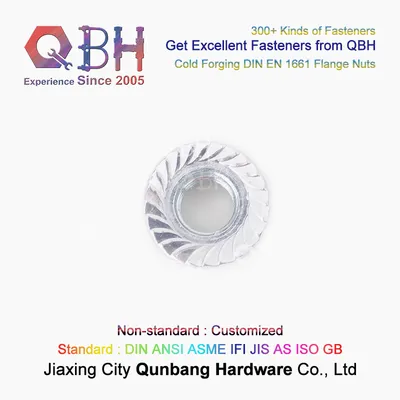

Hex Flange Lock Nut
FLANGE NUTS. Flange nuts are hex nuts with a bottom circular flange that is larger than their top hex section. There are two types commonly available: flange lock nuts, which are prevailing torque type lock nuts, and serrated flange nuts, which are free spinning but have a serrated bearing surface to grip the mating surface.
Specification
DIN 6923 - Hexagon nuts with flange
Current norm: DIN EN 19661
Equivalent norms: ISO 4161; EU 1661;
Legend:
s - size of the hexagon
e - the diameter of the circumscribed circle (not less than)
m - height of the nut
d - the nominal diameter of the thread
dc - outer diameter of the ring
dw - contact surface diameter
r - radius
Steel:6, 8, 10
Stainless: A2 A4
Plastic: -
Non Ferrous: -
Thread: 6G
Notes:
dimensions in mm
| Thread size d | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | |
| - | - | M8x1 | M10x1,25 | M12x1,5 | M14x1,5 | M16x1,5 | M20x1,5 | ||
| - | - | - | (M10x1) | (M12x1,5) | - | - | - | ||
| P | 0,8 | 1 | 1,25 | 1,5 | 1,75 | 2 | 2 | 2,5 | |
| c | min. | 1 | 1,1 | 1,2 | 1,5 | 1,8 | 2,1 | 2,4 | 3 |
| da | min. | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| max. | 5,75 | 6,75 | 8,75 | 10,8 | 13 | 15,1 | 17,3 | 21,6 | |
| dc | max. | 11,8 | 14,2 | 17,9 | 21,8 | 26 | 29,9 | 34,5 | 42,8 |
| dw | min. | 9,8 | 12,2 | 15,8 | 19,6 | 23,8 | 27,6 | 31,9 | 39,9 |
| e | min. | 8,79 | 11,05 | 14,38 | 16,64 | 20,03 | 23,36 | 26,75 | 32,95 |
| m | max. | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| min. | 4,7 | 5,7 | 7,6 | 9,6 | 11,6 | 13,3 | 15,3 | 18,9 | |
| m´ | min. | 2,2 | 3,1 | 4,5 | 5,5 | 6,7 | 7,8 | 9 | 11,1 |
| s | nominal=max. | 8 | 10 | 13 | 15 | 18 | 21 | 24 | 30 |
| min. | 7,78 | 9,78 | 12,73 | 14,73 | 17,73 | 20,67 | 23,67 | 29,67 | |
| r | max. | 0,3 | 0,36 | 0,48 | 0,6 | 0,72 | 0,88 | 0,96 | 1,2 |
Our Services
Professional Manufacturer: All of our Fastener are designed and manufactured according to buyers'Free Samples for Standard Fastener from Jiaxing City Qunbang Hardware
We Promise:
1.High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service
FAQ
1.What's your experience like?
Our general manager has been engaged in the export of fasteners since 2005.
Our team can provide you with professional fasteners selling and smooth export services.
2.How about your price?
High quality products with reasonable price. Please give me a inquire, We will quoted you a price for you
refer at once.
3. How do you control your quality?
We require the quality control department to inspect every production link of each shipment. And we can provide you MTC and mill certificate when the goods is finished.
4.How about your delivery time?
General speaking, if the goods is in stock, we can delivery them with 2-5days, If the quantity is 1-2container,
we can give you with 18-25days,if the quantity is more than 2 container and you are very urgent, we can let
factory priority produce
your goods.
5.What is your packing?
Our packing is 20-25kg for one carton,36 or 48pcs cartons for one pallet. One pallets is about 900-960kg, We also can make customer's logo on the cartons. Or we customized cartons according to customers'
requirement.
6.What is your payment term?
We can accept T/T,LC for general order ,Paypal and Western union for small order or samples order.
Awaiting for your kind inquiry! Thanks & best regards!
