Basic Info.
Surface Treatment
Without Treatment
Transport Package
25kg/Carton
Product Description

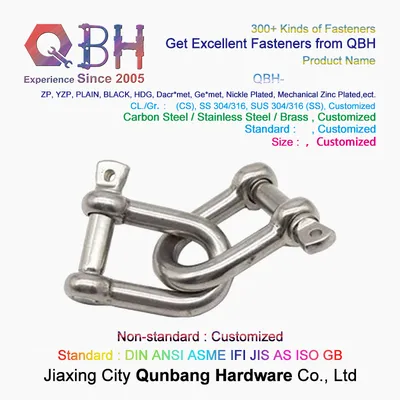

EU. Bow Shackle
E. U. Bow Shackle
Related Standard:U.S. G209,G210,G2130,G2150 Type Shackle, European Dee and Bow Type Shackle, JIS Dee and Bow Type Shackle, Australia Type Shackles, Large D Type Shackle, Twist Type Shackle, Stamped D Type Shackle, Halyard Type Shackle with Key Pin, Headboard Type Shackle with Captive Pin, Plate Type Shackle, Standard or Nonstandard Type etc.
| Min-Max Chain Size(mm) | A(mm) | B(mm) | C(mm) | D(mm) |
| 4 | 16 | 8 | 12 | 4 |
| 5 | 20 | 10 | 15 | 5 |
| 6 | 24 | 12 | 18 | 6 |
| 8 | 32 | 16 | 24 | 8 |
| 10 | 40 | 20 | 30 | 10 |
| 12 | 48 | 24 | 36 | 12 |
| 14 | 56 | 28 | 42 | 14 |
| 16 | 64 | 32 | 48 | 16 |
| 18 | 72 | 36 | 54 | 18 |
| 20 | 76 | 40 | 60 | 20 |
| 22 | 88 | 44 | 66 | 22 |
| 25 | 100 | 50 | 75 | 25 |
| 28 | 112 | 56 | 84 | 28 |
| 32 | 128 | 64 | 96 | 32 |
| 36 | 144 | 72 | 108 | 36 |
The surface is galvanized, corrosion-resistant, not easy to rustProducts are manufactured in strict accordance with standardsand are of high qualityExcellent selection of materials, high hardness and durability
