Basic Info.
Outer Diameter
48 60 68 76 89 114mm
Surface Treatment
Hot Galvanizing
Transport Package
Steel Pallet, Heat Shrinkage Film
Specification
GM-N48-114x600mm-3500mm
Origin
Jiaxing City, Zhejiang Province.

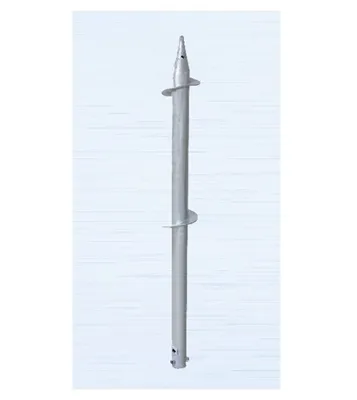

Product Description
Product Description:
| 1.Outer diameter | 48 60 68 76 89 114mm |
| 2.Length | 600-3500mm |
| 3.The flange diameter | N/M |
| 4.The flange thickness | N/M |
| 5.Material | Q235 |
| 6.Thickness | 3-4mm |
| 7.Nut aperture | 3-M16 uniform distribution |
| 8.Surface treatment | Hot galvanizing DIN EN ISO 1461-1999
Average thickness≥80micron |
| 9.Drawing force parameter | 10.7-28.5KN |
| 10.parameter of bearing capacity | 20-40KN |
| 11.Horizontal torsion parameter | 4.5-10.5KN |
| 12.Packaging | Steel Pallet and heat shrinkage film |
| 13.Range of Application | Solar power station, Fence, The simple house, Advertising board, Checkmark field. |
Free Samples for standard fastener from Jiaxing City Qunbang Hardware
ADVANTAGES of Ground screws:
1. Ground screw doesn't need water, it can be normally work in places far away from the water.
2. Ground screw low cost the cement pile, the cost is about 1/3 than of the cement pile.
3. High speed of construction can shorten the construction period.
4. It does not need to coagulation and is not affected by temperature, can be used in winter as well.
APPLICATION FIELD
1.Photovoltaic Power Station:
embedded pile foundation for photovoltaic power generation. Its performance is better than that of cement pile foundation of fast construction efficiency, energy saving and low cost, and greatly reduce the extent of damage to vegetation. Ground crew is the preferred of photovoltaic power plant.
2.Building Foundation Engineering:
The ground screw used on construction is a new discovery. Not only a green energy, but also a good solution to the cement pile restrictions on the use of time and geographical. It can use in winter and permafrost area.
QBH Promise:
1. High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service
Awaiting for your kind inquiry! Thanks & best regards!
