Solar Installation Support System Accessory

QBH Solar Roof Tilting Bracket System has great flexibility for the design and planning of
Commercial or Civil Roof Solar System.It is used for parallel installation of common framed solar
panels on sloping roofs.
Unique aluminum extrusion guide rail, inclined mounting parts, various card blocks and various roof
hooks can be pre-installed to make the installation easy and fast, Saving Your Labor Cost and
Installation Time.
The Customized Length eliminates the need for on-site welding and cutting, thus ensuring high
corrosionresistance, structural strength and aesthetics from the factory to the installation site.

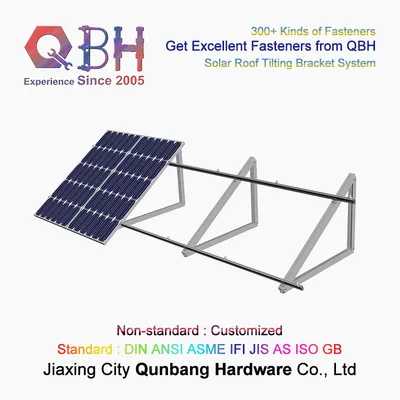

QBH Adjustable Solar Panel Tilt Mount Bracket System is suitable for the flat tin roof solar panel
tilting brackets with great flexibility both for commercial and residential roof solar system. Patented
and innovative rail design, certified mounting solution. Extra tilt angle maximizes the solar panel output.
Solar panel tilt mounting brackets can be used on any flat surface. Ideal for positioning solar panels at
an angle on a rooftop. Maximum tilt angles depend on the size of the panel. Lightweight aluminum
alloy material. Ideal for easy transportation and safe mounting.


Product Features and Advantages:

1. Easy Installation.
The inclined mounting parts can be installed from Any Position of Aluminum Alloy Extrusion Guide
Rail, and pre-installed with the height of the clamping block and hook, thus minimizing the installation
time and cost.

2. High Durability.
With the design concept of 20 Years' Service Life and 10 Years' Quality Assurance, all structural
parts are high-strength stainless steel and anodized aluminum alloy to ensure the high durability of
materials.

3. Withstand Extreme Weather.
The grid solar energy inclined roof support system is designed by experienced engineers according
to AS/NZS 1170 and other international common standards to withstand extreme weather conditions.
The main stress components of the system are tested in various ways to ensure its structural bearing
capacity.

4. Wide Applicability.
The grid solar energy inclined roof support system is applicable to all kinds of Universal Framed
Solar Panels installed on all types of Roofs in the Existing Market, ranging from Small Solar
Energy Systems to Large and Even Several Megawatt Systems.
