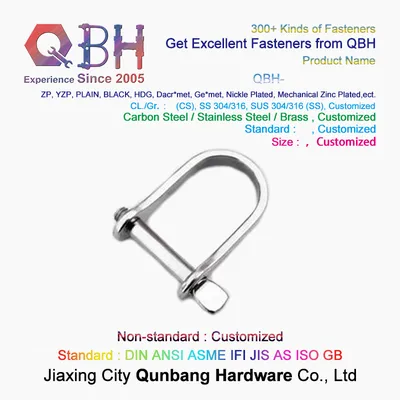

1. Product Description:
Model No.: European D type shackle , Jis D type shackle, US Type forged shackle, self color European Trawling with Square Head Screw Pin Shackle.
Material: ss316 Nickel 10%-12% Mo > 2%
ss304 Nckel 8% - 10%
45# steel /Q235/Alloy Steel.
Surface: Mirror polish
Galvanized/ self color.
Packing: gunny bag /carton+ iron pallet/wooden pallet.
2.Quality Assurance:
Manufacture & Export :
We are professional Manufacturer & Exporter of kinds of shackles from 2002 .
Specilizing in Manufacturing :
European type, US Type, jis type , DIN8210 Type shackle .
Mainly export to :
European countries, USA, Canada, Australia, Japan Korea,Singapore and so on.
Capacity :
We have our own factory and we can control every step ourseves .
3.Service Assurance :
Free Samples for provided if needed .
Accepting Designated Inspections if needed .
All enquiry can be reply in 4 hours .
Waiting for our pleasure cooperations.
Δ 1. Product Description:
European Trawling shackel with Square Head Screw Pin
Nominal Size(tons) | SWL(kg) | D (mm) | d (mm) | a (mm) | c (mm) |
| 0.2 | 200 | 8 | 6 | 12 | 35 |
| 0.3 | 330 | 10 | 8 | 16 | 45 |
| 0.5 | 500 | 12 | 10 | 20 | 50 |
| 0.9 | 930 | 16 | 12 | 24 | 60 |
| 1.4 | 1450 | 20 | 16 | 32 | 80 |
| 2.1 | 2100 | 24 | 20 | 36 | 90 |
| 2.7 | 2700 | 27 | 22 | 40 | 100 |
| 3.3 | 3300 | 30 | 24 | 45 | 110 |
| 4.1 | 4400 | 33 | 27 | 50 | 120 |
| 4.9 | 4900 | 36 | 30 | 58 | 130 |
| 6.8 | 6800 | 42 | 36 | 64 | 150 |
| 9 | 9800 | 48 | 42 | 70 | 170 |
| 10.7 | 10700 | 52 | 45 | 80 | 190 |
| 16 | 16000 | 64 | 52 | 99 | 235 |
| 21 | 24000 | 76 | 65 | 100 | 256 |
Δ 2.Material: Carbon steel, alloy steel, stainless steel, high strength steel.45# steel /Q235/Alloy Steel.
Δ 3.More Informations :
Surface: Galvanized / self color.
The shackle mainly comprises a main body and a lateral pin.
The technology of the shackle is free forged, stamping .
The shackle is commonly used in lifting areas and mainly used for adjusting chainsaw to fasten cargoes
and machineries.
Name | Self color European Trawling with Square Head Screw Pin Shackle.
|
| Material | Carbon steel, alloy steel, stainless steel, high strength steel.45# /Q235/Alloy Steel.
|
| Surface | Galvanized (hot DIP and electroplating), painting, self colored, zinc plate
|
| Process | Drop forged, stamping
|
| Size | 3mm-50mm
|
| Origin | Zhejiang ,China
|
| Standard | CE
|
| Use as | Chain and Wire Rope Accessories
|
| Function | For Lifting Industry
|
| Packing | Gunny bag, wooden case, plastic drum.
|
Δ 4.Rigging Hardware- shackle type:
Screw Pin Anchor Shackle G-209
Round Pin Shackle G-213
Screw Pin Chain Shackle G-210
Round PIn Chain Shackle G-215
Bolt Type Anchor Shackle G-2130
Bolt Type Chain Shackle G-2150
Euro Type Large Dee Shackle Same Size Diameter Pin With Body
Euro Type Large Bow Shackle Same Size Diameter Pin With Body
Trawling Shackle With Square Head Screw Pin
Drop Forged Dee Shackle Italy Type
Grade 80 Dee Shackle With Bolt
Δ 5.Other products
Jiaxing City Qunbang Hardware Co, Ltd also manufacture hooks, shackles, turnbuckles, wire rope clips,
Wire ropes ,load binders and other rigging hardware accessories.
Δ 6.Mainly export to :
Europeancountries,USA,Canada,Australia, Japan,Korea,Singapore ,Dubai India, Dubai and many other
countries.
Δ 7. Advantages:
· China Leading Producing Technology
· Big Production Ability
· Fast Delivery
· Super High Quality
· Competitive Price
· Production& Export Experience From 2002
· Excellent Sale and After-sale Service
· OEM Available
Rich experience for international business, prompt delivery, quality control, small orders are acceptable.
Δ 8. Assurance,
· 100% quality manufacturing.
· Guarantee that our products meet your supplied specifications
· Extremely competitive pricing
· Delivery to your port or front door
· Partial container orders
· Flexible payment options
· Unique tooling options
· Full range of packaging options from bulk to retail ready
· Complete testing services available
Δ 9. Quality Assurance:
A.Have own factory and we can control every step by ourselves .
B. ISO 9001: 2008 international quality system certification .
C.High-qualityworkers.First-class advancedequipment, good quality control, advanced technology.
D.Providing various kinds of packaging according to customers requirements, conventional packaging is
sack and the tray.
Δ 10. Service Assurance :
1.Reliable quality
Excellent hardware product processing enterprise.Focus on Hardware Producing from2002,supplying
high quality hardware products to customers.
2.Competitive price
We can produce various kinds of products according to your request on materials, technology, delivery
etc. so the prices are different. Welcome to inquire.
Little Profit, Long-term and Stable cooperation
Hope our little profit Win stable and long term cooperation.
3.Prompt delivery
Near to Qing Dao Port and Liuting International airport ,very convenient for transportation.
4.Good reputation
If there is Quality Problem , we will bear full responsibility.
All charge in our side.
5.Free Samples for provided if needed .
6.Accepting Designated Inspections from customer if needed .
7.All questions can be reply within 4 hours timely by professionalsales.
