Basic Info.
Style

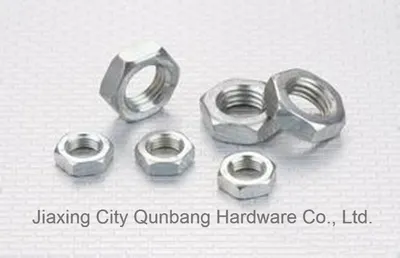

Thin/Jam Nuts Hexagon Head
Transport Package
Bulk/Boxes in Cartons, Bulk in Polybags/-Buckets
Origin
Jiaxing City, Zhejiang Province.
Product Description
Product Description
| STYLE | Hexagon Thin Nuts |
| STANDARD | DIN439 |
| SIZE | M8-M52 |
| FINIISH | B.Z.P. |
| CLASS | 04,05 |
| MATERIAL | low carbon steel, medium carbon steel |
| PACKING | bulk/ boxes in cartons, bulk in polybags/ buckets, etc. |
| PALLET | solid wood pallet, plywood pallet, ton box/bag, etc. |
| Mechanical Properties | ISO898.2 |
Dimension
| | | DIN439 | | | |
| | | | | Unit:mm | |
| D | P | M | S |
| max | min | max | min |
| M8 | 1/1.25 | 4 | 3.7 | 13 | 12.73 |
| M10 | 1/1.25/1.5 | 5 | 4.7 | 17 | 16.73 |
| M12 | 1.25/1.5/1.75 | 6 | 5.7 | 19 | 18.67 |
| M14 | 1.5/2 | 7 | 6.42 | 22 | 21.67 |
| M16 | 1.5/2 | 8 | 7.42 | 24 | 23.67 |
| M18 | 1.5/2/2.5 | 9 | 8.42 | 27 | 26.16 |
| M20 | 1.5/2/2.5 | 10 | 9.1 | 30 | 29.16 |
| M22 | 1.5/2/2.5 | 11 | 9.9 | 32 | 31 |
| M24 | 1.5/2/3 | 12 | 10.9 | 36 | 35 |
| M27 | 1.5/2/3 | 13.5 | 12.4 | 41 | 40 |
| M30 | 1.5/2/3.5 | 15 | 13.9 | 46 | 45 |
| M33 | 1.5/2/3.5 | 16.5 | 15.4 | 50 | 49 |
| M36 | 1.5/2/3/4 | 18 | 16.9 | 55 | 53.8 |
| M39 | 1.5/2/3/4 | 19.5 | 18.2 | 60 | 58.8 |
| M42 | 1.5/2/3/4.5 | 21 | 19.7 | 65 | 63.1 |
| M45 | 1.5/2/3/4.5 | 22.5 | 21.2 | 70 | 68.1 |
| M48 | 1.5/2/3/5 | 24 | 22.7 | 75 | 73.1 |
| M52 | 1.5/2/3/5 | 26 | 24.7 | 80 | 78.1 |
We promise:
A. The fastest response: Informations about the product will be replied the first time as soon as we receive the inquiry.
B. High quality: Durability testing and critical technical are designed to enhance the lifetime of the fasteners.
C. Cost effective: Competitive prices with factory directly supply.
D. The shortest delivery:The goods will be deliveried within 30 days.
E. Professional manufacturer: All of our fasteners are designed and manufactured according to buyers' specification and performance.
FAQ
Q:Are you a factory or trading company?
A: We are factories, mainly producing fasteners, such as nuts, bolts, screw and rod, and meanwhile, we also manage other hardware products.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiaxing City, Zhejiang Province with a good location and convenient transportation, which is next to Shanghai Port, Ningbo Port and Zhapu Port.
Q: How does you factory do regarding quality control?
A: "Quality is priority" we supervise each production link and we always attach great importance to quality controlling from the beginning to the end.
Awaiting for your kind inquiry!
Thanks & best regards!
For more information, please visit: http://qbfastener.en.made-in-china.com&http://www.qbfastener.en.made-in-China.com
